Custom plastic guide rails manufacturer

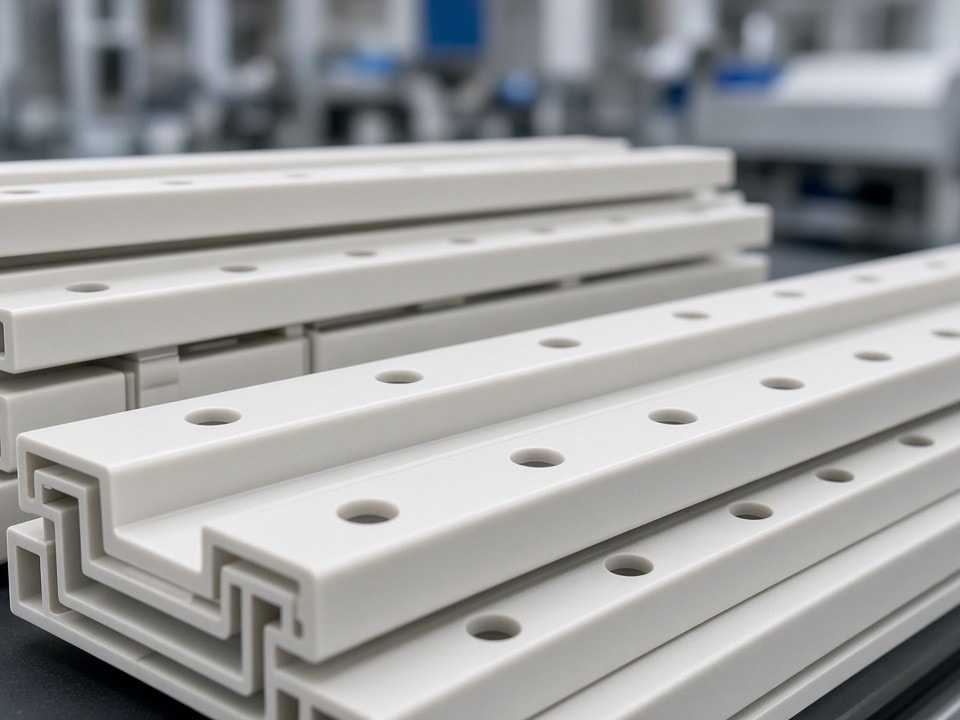

Plastic guide rails made to fit your production line
Plasticpartsmfg manufactures precision plastic guide rails for conveyor systems, filling lines, packaging equipment, food machinery, and industrial automation. Send us your CAD files or engineering drawings for prototype parts or repeat production batches.
CNC machining · Prototype to mass production · Manufacturing in Shenzhen, China
1 piece+
Flexible quantities, from prototypes to mass production
6 file formats
STEP, STP, IGES, X_T, DXF, DWG, and PDF drawings accepted
Made to drawing
Profiles, lengths, mounting holes, and finish tailored to your design
Manufacturing capabilities
Precision production for demanding lines
High-precision CNC machining helps achieve the tolerances and surface finish needed for reliable movement on high-speed conveyor and packaging equipment.
Production can include straight rails, custom curves, unusual cross-sections, drilled mounting patterns, and matching metal structures, manufactured to your drawings and required lengths.
Processes
CNC machining, laser cutting, and profile milling
Engineering plastics
UHMW-PE, HDPE, POM (Delrin), PA (Nylon), PTFE, and PET
Production stages
Prototype, low-volume, bridge production, and contract manufacturing
Secondary operations
Precision drilling, countersinking, slotting, polishing, and assembly
Drawing-based manufacturing
Share STEP, STP, IGES, X_T, DXF, DWG, or PDF files. We manufacture to your specified dimensions, tolerances, hole patterns, and required rail lengths.
Product range
Common plastic guide rail subcategories
Choose a rail by the conveyed product or chain, path geometry, and mounting arrangement. Profiles can be adapted to your equipment layout and engineering drawings.
Plastic Straight Guide Rails
Linear profiles guide products along straight conveyor sections; length and fixing-hole locations follow your line design.
Plastic Curved Guide Rails
Curved profiles guide products around direction changes, with geometry matched to the conveyor path.
Plastic Conveyor Guide Rails
Guide rails for conveyed items, designed around product dimensions, running clearances, and installation points.
Plastic Chain Guide Rails
Profiles support chain tracking and help reduce friction along the specified machine route.
Plastic Bottle Guide Rails
Bottle-handling profiles help maintain stable product movement on bottling and filling lines.
Plastic Side Guide Rails
Side-mounted profiles guide products at the conveyor edge and can be configured for the required mounting structure.
Plastic Snap-On Guide Rails
Snap-on profiles are shaped for compatible support structures where quick installation or replacement is needed.
Plastic Adjustable Guide Rails
Adjustable arrangements support line flexibility for varying product widths and operating setups.
Plastic Profile Guide Rails
Custom extruded or machined cross-sections address specific fit, support, and mounting requirements.
Custom Machined Guide Rails
Drawing-led rails can include complex contours, chamfers, slots, integrated holes, and matching metal structures.
Material selection
Select plastic for the operating environment
Guide rails in industrial settings must handle continuous operation, mechanical wear, and potential chemical exposure. Material choice also affects friction, noise, stiffness, and dimensional behavior.
Why UHMW-PE is widely used
UHMW-PE offers strong wear resistance, a low coefficient of friction, and noise-dampening properties—useful characteristics for conveyor and packaging applications.
UHMW-PE — wear resistance and low friction
A common choice for guide rails that need durable sliding performance and reduced operating noise.
POM (Acetal/Delrin) — stiffness and dimensional stability
Selected for precision applications requiring high stiffness, stable dimensions, and low moisture absorption.
PA (Nylon) — toughness and impact resistance
A tough engineering plastic option for heavy-duty components and applications where impact resistance matters.
HDPE — cost-effective conveying
A practical material option for standard-duty conveying and material-handling applications.
From drawing to finished rail
Production shaped around your project
Whether you are developing a pilot line or sourcing ongoing OEM and maintenance supply, production quantities can range from one piece to mass production.
01
Share your requirements
Provide CAD files or engineering drawings, material preferences, quantities, and tolerance or finish requirements.
02
Confirm the design details
Specify rail geometry, required lengths, mounting-hole patterns, and any slots, countersinks, or chamfers.
03
Manufacture to print
CNC machining and related processes produce the specified rail profile and secondary features.
04
Support your production run
Choose prototype, low-volume, bridge, or contract manufacturing to suit your equipment project.
Engineering-led manufacturing
Custom details that make rails fit the equipment
Manufacturing directly from STEP or PDF drawings supports specified dimensions, tolerances, and hole patterns. Experience with engineering plastics also helps account for material behavior, including thermal expansion and stress relief.
-
Designed for your line
Straight and curved profiles, unusual cross-sections, rail lengths, and mounting configurations can be tailored to the application.
-
Complete-to-print features
Precision drilling, countersinking for flush fasteners, slotting, polishing, and assembly are available as secondary operations.
-
Flexible quantities
From pilot-line quantities of 1–50 pieces to ongoing OEM supply of 500+ pieces, production can scale to your needs.
Request a quotation
Send your guide rail requirements
For a formal quote, include the information below so the rail profile, material, and production requirements can be reviewed together.
- CAD files or engineering drawings: STEP, STP, or PDF preferred.
- Material specification: For example, UHMW-PE or POM.
- Quantity: Prototype or production batch size.
- Tolerances and finish: Note mounting, surface, and installation requirements.
Contact Plasticpartsmfg at [email protected] or discuss your technical specifications with our team in .
