Custom PEEK Parts
Plasticpartsmfg engineers and manufactures mission-critical PEEK (Polyetheretherketone) components directly from your CAD models and 2D engineering drawings. From single rapid prototypes and validation samples to scheduled low-volume production runs, we provide precision CNC machining, high-temp injection molding, and industrial 3D printing tailored to stringent thermal, mechanical, and dielectric tolerances.
Quick Engineering Reference
PEEK 450G / GF / CF- Continuous Temp Limit: 250 °C to 260 °C
- Tensile Strength: 100 - 170 MPa
- Chemical Resistance: Hydrocarbons, Steam & Solvents
- Accepted Data Formats: STEP, STP, IGES, X_T, PDF
- Batch Flexibility: 1 pc prototype to 10,000+ pcs
PEEK Manufacturing Capabilities by Process
Evaluate the optimal production route for your custom PEEK components based on part geometry, structural specifications, tooling investment, and projected order volumes.
| Attribute | PEEK CNC Machining | PEEK Injection Molding | PEEK 3D Printing | PEEK Rapid Tooling |
|---|---|---|---|---|
| Material Grades | Extruded & Compression Rod/Plate; Virgin PEEK, GF30, CF30, Ceramic-filled | Standard pellet resins: Victrex 450G, Evonik VESTAKEEP, Solvay KetaSpire, Medical-grade granules | High-temp industrial filament: Pure PEEK, Carbon-fiber reinforced PEEK | Pre-hardened aluminum or steel core inserts running standard PEEK resins |
| Process & Tolerance |
3-Axis, 4-Axis & 5-Axis Milling / Turning Tolerance: ±0.02 mm to ±0.05 mm |
High-Pressure Hot Runner Molding (380°C+) Tolerance: ±0.03 mm to ±0.08 mm |
Industrial FDM/FFF with heated chamber Tolerance: ±0.1 mm to ±0.2 mm |
Modular Master Unit Die (MUD) Tooling Tolerance: ±0.04 mm to ±0.1 mm |
| Key Applications | Semiconductor wafer chucks, aerospace bushings, analytical manifolds, high-voltage isolators | Automotive sensor housings, subsea connectors, fluid valves, repeat medical device components | Functional benchtop testing, complex internal ducting, light-weight organic lattice structures | Pilot validation batches, bridge production prior to multi-cavity hardened tooling |
| Batch Suitability | 1 – 1,000 pcs (Zero tooling cost; optimal for high precision & low stress) | 1,000 – 100,000+ pcs (Lowest unit cost; requires hardened tooling investment) | 1 – 20 pcs (Rapid turnaround, no molds, ideal for geometry validation) | 50 – 2,500 pcs (Short lead-time molds with actual molding properties) |
| Standard Lead Time | 3 – 7 business days | 18 – 30 business days (Molds + T1 samples) | 2 – 4 business days | 10 – 16 business days |
| Secondary Operations | Thermal annealing, bead blasting, ultrasonic cleaning, threaded inserts | Pad printing, laser marking, ultrasonic welding, post-mold curing/annealing | Support removal, solvent smoothing, annealing, CNC secondary milling | Dimensional verification, thread tapping, custom packaging, batch serialization |
| Quote Action | Quote CNC | Quote Molding | Quote 3D Print | Quote Tooling |
Why Engineers Choose Plasticpartsmfg for Critical PEEK Parts
PEEK requires rigorous thermal control, sharp tooling, and specific stress-relief protocols to prevent dimensional distortion and micro-cracking.
Controlled Annealing Cycles
Uncontrolled machining heat causes residual internal stresses. We implement dedicated pre-machining and post-machining ramped annealing to guarantee long-term stability and structural cohesion under thermal cycling.
High-Temp Barrel Molding
With processing temperatures reaching 400 °C and mold temperatures exceeding 160 °C, our specialized high-heat molding machines maintain exact crystalline development for peak tensile and wear resistance.
Strict Metrology & Traceability
Every critical feature is verified on calibrated CMMs and 2.5D optical measuring instruments. Full material mill certs, raw material lot documentation, and dimensional FAI reports are supplied with each shipment.
Custom PEEK Parts & Process Articles
Browse technical capabilities, design tips, and manufacturing specifications for custom PEEK components.

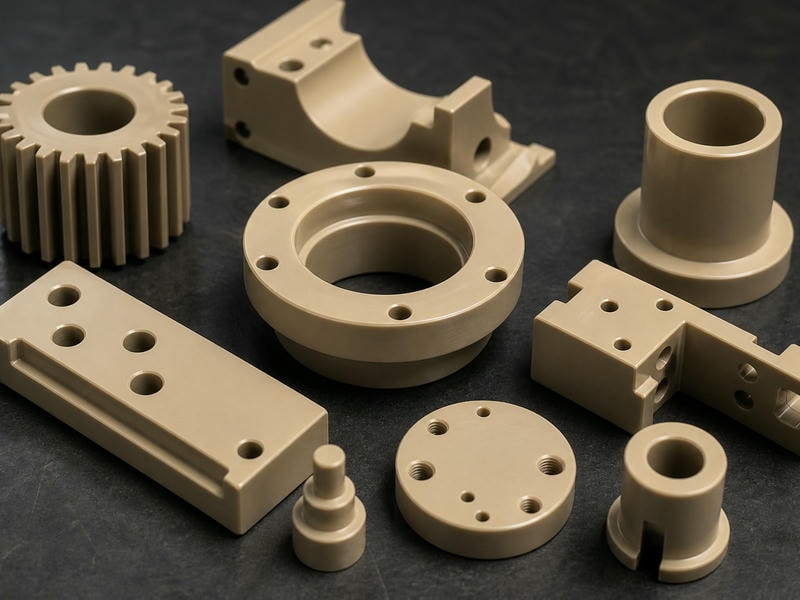

Custom PEEK CNC Machining Services | Precision Plastic Parts | Plasticpartsmfg
Expert PEEK CNC machining services in Shenzhen. High-precision engineering plastic components for demanding industries. Fast turnaround for prototypes and production.
View details →

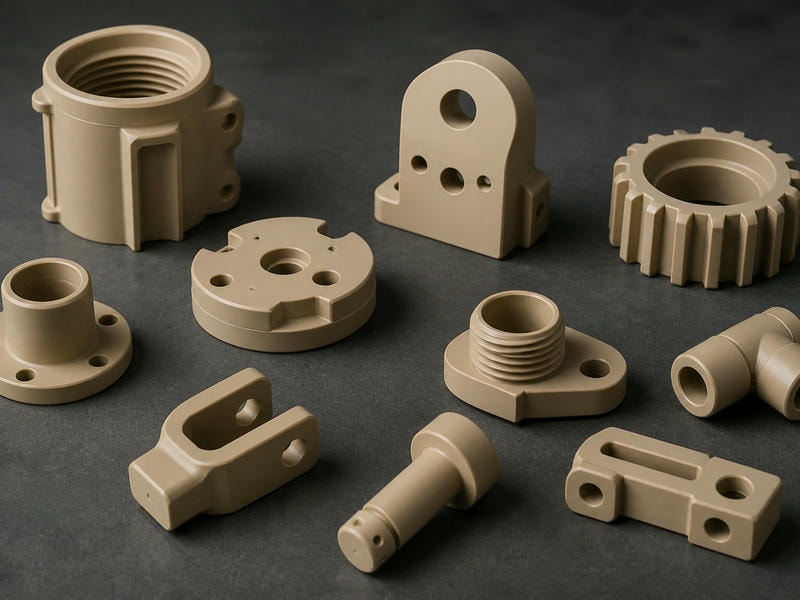

Custom PEEK Injection Molding Services | High-Performance Plastic Components
Plasticpartsmfg provides precision PEEK injection molding services in Shenzhen, China. Specialized in high-performance engineering plastics for demanding applications. Request a quote.
View details →

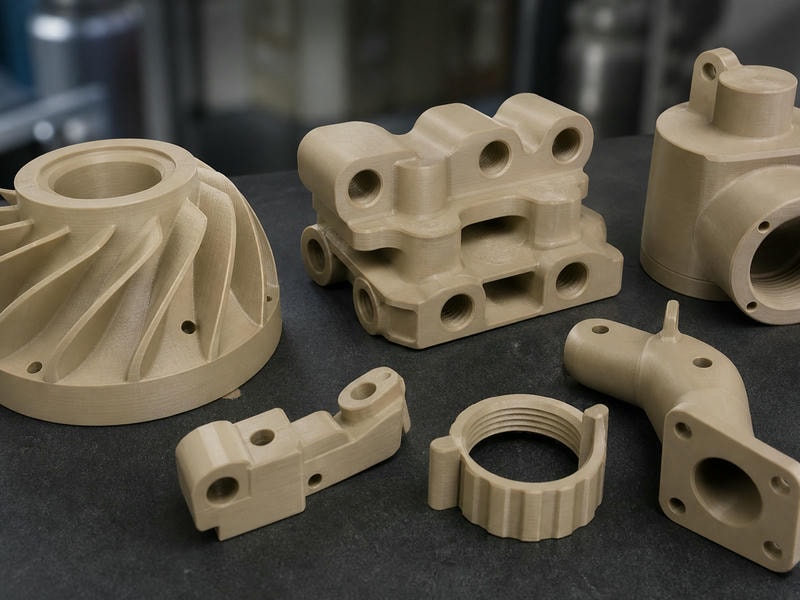

Custom PEEK 3D Printing Services | High-Performance Parts | Plasticpartsmfg
Get professional PEEK 3D printing services for high-performance components. Fast prototyping and low-volume production for industrial, medical, and engineering applications. Upload your CAD files for a quote.
View details →Request a Custom PEEK Quotation
Send your STEP files, technical PDF drawings, or project requirements. Our manufacturing engineers in Shenzhen will assess tolerances, recommend optimal machining or molding approaches, and return a comprehensive quotation with DFM feedback.
Rapid Response Window
Engineering quotes provided within 12 to 24 hours.
Non-Disclosure Agreement (NDA)
Your design files and intellectual property remain strictly confidential.
Supported Formats
STEP, STP, IGES, X_T, DXF, DWG, and engineering PDFs.
Production facility: Bao'an District, Shenzhen, China • Serving hardware innovators, industrial equipment OEMs, and medical instrument designers worldwide.
Submit Your Project Details
Specify material grade (e.g. Virgin PEEK, PEEK GF30), expected volume, and target delivery date.
