Custom Plastic Support Blocks Manufacturer
Plasticpartsmfg manufactures custom plastic support blocks for machinery, electronics, fixtures, conveyors and industrial structures. Send your CAD files or drawings for blocks with specified support faces, locating holes, slots, steps or inserts.
Based in Shenzhen, China, we support prototype orders, low-volume production and repeat manufacturing. Parts can be made to your requirements for material, dimensions, tolerances, surface finish and assembly.

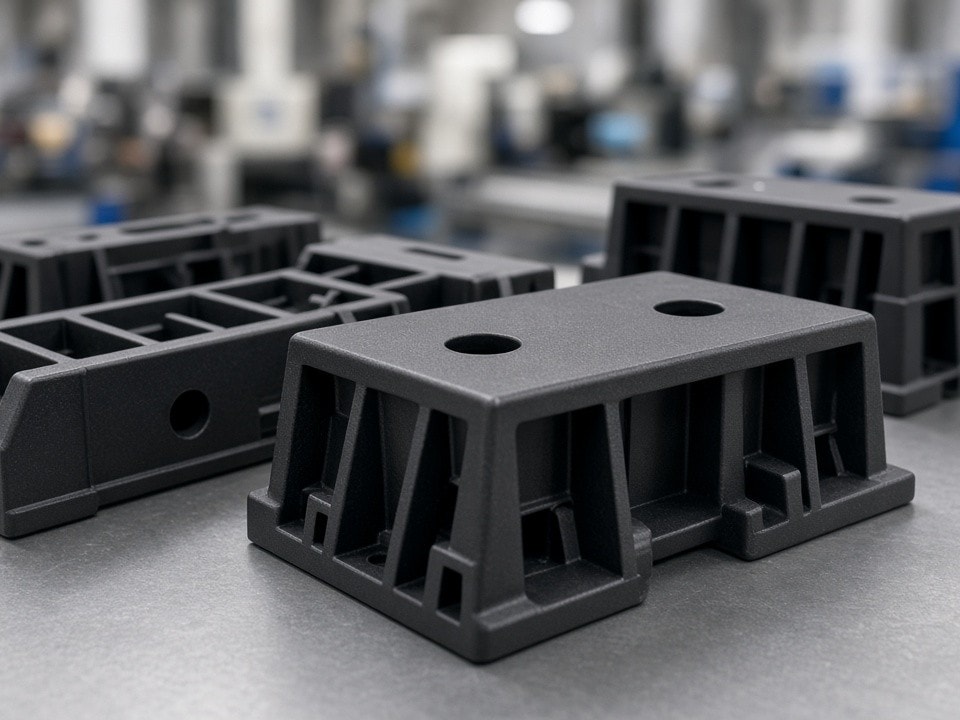

Plastic Support Blocks Made to Your Drawing
A plastic support block positions, separates, supports or protects components within an assembly. Its geometry may include a flat or contoured support face, mounting holes, slots, shoulders, pockets or metal inserts. The right design depends on how the block is mounted and the forces it must withstand.
Compared with metal, plastic may offer electrical insulation and a surface that is less likely to scratch adjacent parts. Performance varies by material, block geometry, temperature and loading conditions. Share your application details so the material and manufacturing route can be reviewed against the actual requirements.
Features manufactured to specification
- Flat, angled, stepped or contoured support surfaces
- Through holes, blind holes, counterbores and locating holes
- Slots, grooves, pockets and clearance features
- Shoulders and offsets for positioning components
- Insert features and bonded or assembled components, where appropriate
- Custom edges and surface finishes for contact with other parts
Provide a drawing that identifies critical dimensions, hole locations, datum references and any features that affect installation or alignment.
Custom Support Block Manufacturing Capabilities
We produce support blocks from CAD files, engineering drawings or physical samples. Manufacturing process selection depends on the part geometry, plastic material, required quantity and production stage.
| Requirement | Manufacturing options |
|---|---|
| Prototype or a few parts | CNC machining or plastic 3D printing |
| Functional samples and small batches | CNC machining, vacuum casting or silicone molding |
| Repeat production | Injection molding or another process suited to the part and order quantity |
| Formed or hollow components | Thermoforming, blow molding or rotational molding where the design fits |
| Flat patterns and profiles | Laser cutting where suitable |
| Finishing and delivery preparation | Polishing, painting, printing, engraving, bonding, assembly and packaging |
Available options depend on part design and material. We review the geometry and requirements before recommending a process.
Material Options for Plastic Support Blocks
Material choice affects stiffness, wear behavior, electrical properties, dimensional stability and suitability for the operating environment. Plasticpartsmfg works with common and engineering plastics including ABS, PP, PE, HDPE, PVC, PC, PMMA, PET, POM, PA, PBT, PPS, PEEK, PSU and PPSU.
POM and PA
Consider for machined blocks where stiffness, dimensional requirements or sliding contact matter; confirm suitability for the specific load and environment.
PE and HDPE
Consider where the application calls for a polyethylene component; provide details of the support and mounting conditions.
PC and ABS
Options for selected equipment and electronics applications; specify any appearance, impact or temperature requirements.
PEEK, PPS, PSU and PPSU
Engineering plastic options for demanding applications; confirm operating conditions and performance requirements before selection.
PP, PVC, PET and PBT
Other material options to assess against the component's mechanical, electrical and environmental needs.
Material selection support
State the expected load, temperature, exposure to chemicals or moisture, and any electrical insulation requirements so the material can be assessed appropriately.
Discuss your material needsDimensional and Functional Requirements
A support block must fit its mating components and maintain its intended position in service. The drawing should identify which dimensions control fit, alignment or load transfer. Include the required tolerances rather than relying on an assumed general tolerance.
Load and rigidity
For load-bearing parts, provide the load direction and expected static or repeated loading. Rigidity depends on material, wall thickness, unsupported length, mounting method and geometry.
Safety-critical assemblies
If the block supports a safety-critical assembly or has a defined service life, include the relevant design criteria and validation requirements.
Contact surfaces
Specify whether the block needs a smooth finish, a particular texture or protection against marking adjacent parts.
Operating environment
Share any requirements for electrical isolation, wear, vibration or environmental exposure.
Common Plastic Support Block Subcategories
We manufacture custom support blocks for a range of equipment and industrial uses. These names describe application or geometry, not a fixed standard design. Send a drawing or sample to confirm whether the part can be produced using a suitable plastic and manufacturing process.
Applications Across Industrial Assemblies
Custom plastic support blocks can be used across a wide range of industrial assemblies. The component design, plastic grade and operating environment determine suitability. Include the application context with your RFQ so the requirements can be reviewed together.
Machinery and industrial equipment
Mounting, spacing and supporting internal components.
Electronics and electrical assemblies
Positioning components and providing a plastic support or insulating interface where the selected material is suitable.
Fixtures and jigs
Locating workpieces or supporting tooling elements.
Conveyors and rail systems
Supporting guides or related components to drawing.
Pipes and structural assemblies
Providing a shaped support or spacer for a defined installation.
Robotics and automation
Custom supports for brackets, sensors, housings and moving assemblies.
Choosing a Manufacturing Process
The right process depends on quantity, geometry, material and whether the design is still changing. If you are unsure which route fits your order, send the part files, estimated quantity and intended production schedule. We can review the options against your requirements.
Ask for a process review-
CNC machining
Suitable for custom geometries and prototypes or low-volume parts made from plastic stock. It can be a practical option when you need to revise a design without first committing to production tooling.
-
Plastic 3D printing
Can support early prototypes and design checks, depending on the required material and part performance.
-
Vacuum casting or silicone molding
May suit selected functional samples and small batches.
-
Injection molding
Can be considered for repeat production when the part design and expected quantity support tooling investment.
-
Other molding or forming processes
May be appropriate for specific part shapes, including hollow or sheet-based components.
What to Include in Your RFQ
For a useful quotation and manufacturing review, provide as many of these details as possible.
CAD files or drawings
STEP, STP, IGES, X_T, STL, DXF, DWG or PDF.
Quantity
Prototype count, initial batch size and estimated repeat demand.
Material
Preferred plastic grade, or the operating conditions and performance needs for material selection.
Dimensions and tolerances
Identify critical fits, locating features and support surfaces.
Load and installation details
Load direction, mounting method, fasteners and mating components.
Surface and appearance
Finish, color, texture, printing or other secondary operations.
Application environment
Temperature, moisture, chemicals, vibration and electrical requirements, if relevant.
Request a Quote for Custom Plastic Support Blocks
Send your drawings or CAD files to Plasticpartsmfg for a review of material, process, quantity and manufacturing requirements. We support projects from a single prototype to repeat production, with finishing, assembly and packaging options available where required.
Include the expected load, critical dimensions, tolerances and installation method with your inquiry to help us assess your custom plastic support blocks.
