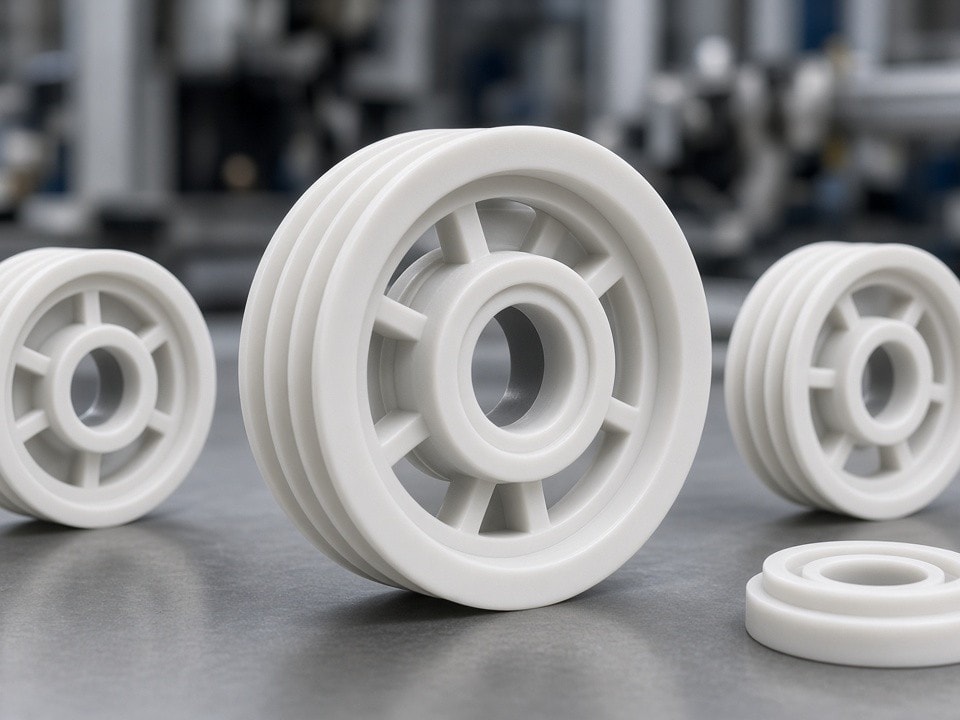

Custom Plastic Pulleys Manufacturing Services
Plasticpartsmfg specializes in the precision manufacturing of custom plastic pulleys for engineers and procurement teams in the automation, robotics, and industrial equipment sectors. Based in Shenzhen, we provide end-to-end manufacturing solutions—from initial prototype design validation to low-volume bridge production and full-scale contract manufacturing.
Whether you require high-tolerance timing pulleys for precision drives or wear-resistant idler pulleys for conveyor systems, our facility is equipped to machine or mold components according to your exact CAD specifications.
- Tolerance
- ±0.01 mm
- Volume
- 1 – 100,000+
- Materials
- POM · Nylon · PEEK
Manufacturing Capabilities and Technical Specifications
We utilize CNC machining for high-precision, low-to-medium volume requirements and injection molding for mass production. Our technical focus is on maintaining dimensional accuracy, concentricity, and precise bore-to-shaft fits.
| Specification | Typical Capability |
|---|---|
| Common Materials | POM (Acetal), Nylon (PA6/PA66), PEEK, UHMW-PE, HDPE, PC |
| Manufacturing Processes | CNC Turning/Milling, Injection Molding, Vacuum Casting |
| Tolerance Range | Down to ±0.01mm (depending on geometry and material) |
| Secondary Operations | Bearing press-fitting, Keyway broaching, Surface finishing, Deburring |
| Input File Formats | STEP, STP, IGES, X_T, DXF, PDF |
| Production Volumes | 1 to 100,000+ pieces |
Common Plastic Pulley Sub-Categories
We manufacture custom pulleys designed for specific transmission and guidance requirements. We work directly from your technical drawings to ensure the correct profile, tooth geometry, and mounting configuration. Differences across these categories come down to belt type, groove profile, bearing mounting, tooth geometry, and drive purpose.
Plastic Timing Pulleys
Precision tooth profiles for synchronous motion in precision drives.
Plastic V-Belt Pulleys
Optimized groove angles for efficient power transmission.
Plastic Flat Belt Pulleys
Crowned or flat face designs for various belt widths.
Plastic Idler Pulleys
Engineered for low-friction rotation, often including bearing integration.
Plastic Guide Pulleys
Specialized groove radii for wire rope or cable tracking.
Plastic Groove Pulleys
Custom groove profiles machined to match your belt cross-section.
Plastic Cable Pulleys
Controlled groove geometry for stable cable guidance and routing.
Plastic Bearing Pulleys
Designed for direct press-fit of standard ball bearings.
Plastic Tensioner Pulleys
Built for belt tensioning duties with integrated bearing seats.
Custom Multi-Groove Pulleys
Custom profiles for complex multi-belt drive systems.
Material Selection for Industrial Performance
Choosing the right plastic is critical for the longevity of your pulley system. We assist in material selection based on your application’s environmental and mechanical demands.
- Wear resistance and low friction for continuous rotation.
- Lightweight, low-inertia bodies for fast indexing axes.
- Stable bore-to-shaft fits and bearing press-fit housings.
POM (Delrin/Acetal)
Excellent dimensional stability, high stiffness, and low friction. Ideal for gears and pulleys in automation equipment.
Nylon (PA6/PA66)
High wear resistance and toughness; suitable for heavy-duty idler applications.
PEEK
Used for high-temperature, chemically harsh, or high-performance medical and aerospace environments where plastic must replace metal.
UHMW-PE
Superior impact strength and extremely low coefficient of friction for conveyor guide pulleys.
Engineering Considerations for Custom Pulleys
To ensure your pulleys perform reliably in your assembly, we focus on several key engineering factors during the manufacturing review process.
-
1
Concentricity & Run-out
We ensure the bore and the outer diameter (or pitch diameter) are perfectly aligned to prevent vibration and premature belt wear.
-
2
Bearing Integration
We machine precise housing diameters for press-fit bearings, accounting for interference fits and thermal expansion coefficients of plastics.
-
3
Surface Finish
Smooth groove surfaces are maintained to minimize friction, heat generation, and belt degradation.
-
4
Keyways and Set Screws
We provide secondary machining for standard keyways, set screw holes, or D-cut bores to ensure secure shaft mounting.
From Prototype to Production
We support the full product development lifecycle. If you are in the R&D phase, our CNC machining services allow for rapid iteration without the need for expensive tooling. For production quantities, we offer rapid tooling and injection molding solutions that provide consistent unit costs while maintaining the strict tolerances established in your prototype phase.
By handling the secondary operations—such as assembly, bearing insertion, and custom packaging—in-house, we reduce your supply chain complexity and ensure that components arrive ready for immediate integration into your equipment.
Stage 01
Prototype & Validation
CNC machining from your CAD files for design validation with no tooling investment.
Stage 02
Bridge Production
Low-to-medium volumes machined to the tolerances proven during prototyping.
Stage 03
Rapid Tooling
Tooling built quickly to move from machined parts to molded components.
Stage 04
Contract Manufacturing
Injection molding at scale with in-house assembly, bearing insertion, and packaging.
Request a Quotation
To receive a formal quote, please send your CAD files (STEP or IGES preferred) and technical drawings to [email protected].
Please include the following details in your inquiry
- Material and color requirements.
- Required tolerance for critical dimensions (e.g., bore diameter).
- Estimated annual volume or batch size.
- Any specific secondary operations (e.g., bearing installation).
Our engineering team will review your files for manufacturability and provide a quotation based on the most efficient production method for your specific quantities.
