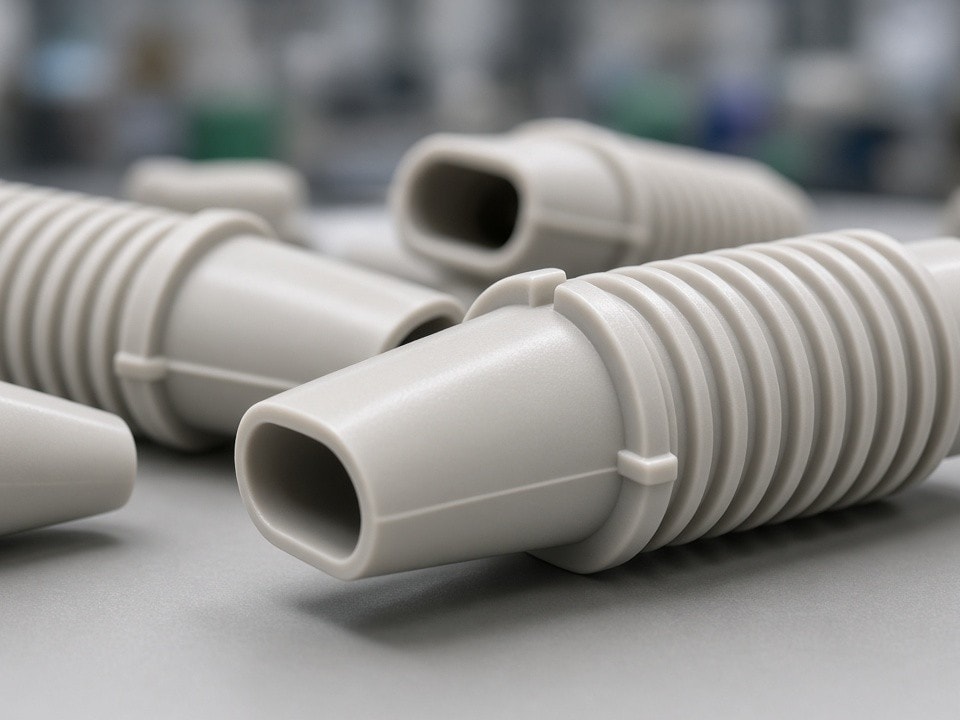

Custom Plastic Cable Insulators, Made to Your Drawing
From prototypes to repeat production, Plasticpartsmfg manufactures plastic cable insulators for industrial harnesses, power equipment, test systems, and specialized wiring. We translate your technical drawings into components designed around your dielectric, thermal, and mechanical requirements.
- Drawing-based manufacturing
- Prototype through mass production
- Multiple engineering plastics
Built for critical wiring systems
Insulating sleeves, supports, guides, and non-standard components tailored to your application and specified material.
Manufacturing capabilities
The process and material options to fit your project
Choose a production route based on component geometry, material, and quantity. We support projects from a single prototype to ongoing production.
- Common materials
- PEEK, POM, PA (Nylon), PPS, PSU, PC, PP, PVC
- Manufacturing processes
- CNC machining, injection molding, vacuum casting, 3D printing
- Typical tolerances
- ±0.02 mm to ±0.1 mm, depending on material and geometry
- Secondary operations
- Deburring, surface polishing, laser engraving, assembly
- File formats
- STEP, STP, IGES, X_T, STL, DXF, DWG, PDF
- Order quantity
- 1 piece through mass production
Product range
Common plastic cable insulator subcategories
We make cable isolation, support, and routing components for equipment assemblies and wiring systems. Select a form below as a starting point, or share your own geometry.
- 01
Plastic Cable Insulating Bushings
Pass-through parts that help prevent cable abrasion and electrical shorts.
- 02
Plastic Cable Insulating Sleeves
Custom-sized insulating covers for defined cable or wire-bundle requirements.
- 03
Plastic Wire Insulators
Standard or custom geometric insulating stand-offs.
- 04
Plastic Cable Support Insulators
Structural parts designed to secure cables in equipment and assemblies.
- 05
Plastic Cable Entry Insulators
Components for insulated cable entry points in enclosures.
- 06
Plastic High-Voltage Cable Insulators
Parts specified for high-dielectric-strength plastics such as PEEK or PPS.
- 07
Plastic Wire Guide Insulators
Precision channels for controlled cable routing in automated systems.
- 08
Plastic Harness Insulators
Shaped blocks that help organize complex industrial wire harnesses.
- 09
Plastic Cable Separation Blocks
Multi-channel parts for spacing and separating wires in modular systems.
- 10
Custom Cable Insulating Components
Non-standard forms manufactured to your engineering requirements, drawing, and installation method.
Material selection
Match the plastic to the operating conditions
The right insulator material depends on electrical, thermal, mechanical, and safety requirements. Share your operating environment and material specifications for review.
Dielectric performance
PC and PPSU are among the options to consider for applications requiring electrical insulation in high-voltage environments.
Temperature resistance
PEEK and PPS may suit components operating near heat sources or high-current loads.
Wear and mechanical integrity
POM and PA are options for wear-resistant guides, supports, and structural mounts.
Flame retardancy
Where required, specify materials compliant with the relevant UL94 classification for your system.
Material suitability and performance depend on the grade and application. Include any required certifications or technical data sheets with your inquiry so the raw material batch can be checked against your project standards.
Production stages
Move from prototype to repeat production
Production methods can adapt as your design and quantity requirements change.
01 / Prototype
1–20 pieces
Check fit, form, and clearances
CNC machining or 3D printing can support early design validation, including dielectric clearance checks.
02 / Validation
20–500 pieces
Evaluate parts in real conditions
Low-volume batches can be produced by CNC machining or rapid tooling for engineering validation.
03 / Production
Thousands of units
Support ongoing manufacturing
Injection molding can support repeat production with attention to material properties and dimensional accuracy across batches.
Engineering and quality
A manufacturing workflow built around your specification
For engineering teams and procurement managers, accuracy starts with clear requirements and continues through review, production, and inspection.
Drawing-based manufacturing
Parts are manufactured to your CAD files and technical drawings, with dimensional inspections on every batch.
Flexible early-stage production
CNC machining offers a route to iterate designs before committing to injection-molding tooling.
DFM support
File reviews can flag manufacturing considerations such as wall thickness, draft angles, and material stress before production begins.
Common project questions
Which files should I provide?+
Send your STEP, STP, IGES, X_T, STL, DXF, DWG, or PDF files, along with technical drawings when available.
Can I order prototypes before production?+
Yes. Prototype quantities can start at one piece, with CNC machining or 3D printing available for early validation.
What should I specify for the material?+
Provide a preferred grade or describe the electrical, temperature, wear, and flame-retardancy requirements. Include any required certifications or technical data sheets.
Request a quotation
Share your drawing and project requirements
Send your STEP or IGES files and technical drawings for a quotation. Our facility in Shenzhen supports custom plastic cable insulator manufacturing for industrial applications.
Start Your QuoteInclude these details in your request
- 1. Material: Required grade or operating environment details.
- 2. Quantity: Prototype, validation, or production quantity.
- 3. Dimensions: Surface finish and tolerance specifications.
- 4. Additional requirements: Assembly with hardware, certifications, or specific packaging.
