Custom PVC Thermoforming and Vacuum Forming Services
Plasticpartsmfg provides professional thermoforming and vacuum forming services for custom plastic components. Based in Shenzhen, China, we support product development teams, hardware startups, and industrial manufacturers with solutions ranging from rapid prototypes to low-volume production runs.
We specialize in processing PVC and other thermoplastic sheets into complex, thin-walled, or large-surface-area parts. Whether you require specific material grades for industrial equipment or aesthetic enclosures for consumer products, our team delivers parts manufactured to your technical drawings and material specifications.
Manufacturing Capabilities & Technical Specifications

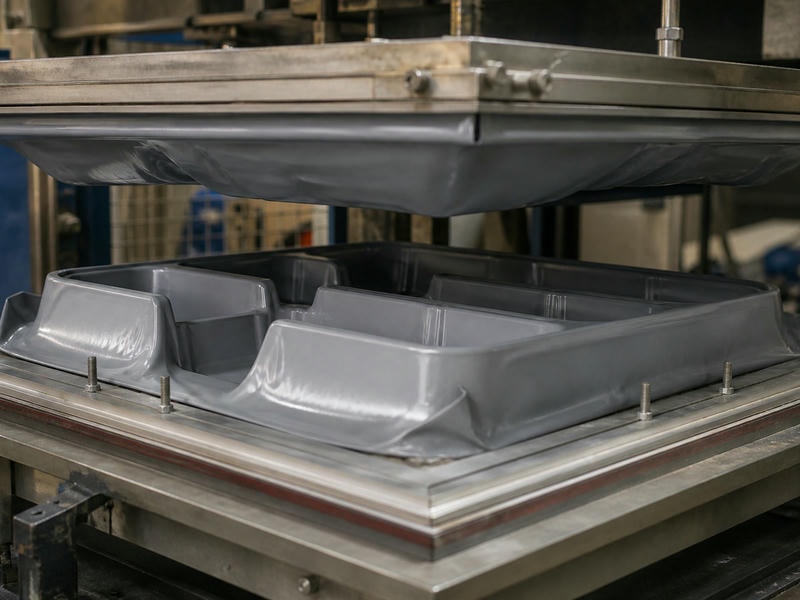

We operate a range of thermoforming and vacuum forming equipment capable of handling various sheet thicknesses and material types. Our manufacturing process is optimized for dimensional accuracy, consistent wall thickness, and efficient material usage.
| Feature | Specification |
|---|---|
| Primary Process | Vacuum Forming, Pressure Forming, Twin-Sheet Forming |
| Standard Materials | PVC, PETG, ABS, HIPS, PC, PMMA, PE, PP |
| Typical Tolerance | ±0.5 mm to ±1.0 mm (dependent on geometry) |
| Sheet Thickness | 0.5 mm to 10.0 mm |
| Max Part Size | Up to 2000 mm x 1500 mm |
| Production Volume | 1 to 5,000+ pieces |
| Input Files | STEP, STP, IGES, X_T, DXF, DWG, PDF |
Why Choose Thermoforming for Your Project
Thermoforming is a cost-effective alternative to injection molding for large plastic parts, especially when production volumes do not justify the high investment of steel tooling. By using aluminum or composite molds, we significantly reduce lead times and tooling costs.
Large Enclosures
Durable covers, protective housings, and specialized cases for industrial machinery.
Thin-Walled Components
Material-efficient structural trays, protective liners, and internal assembly panels.
Design Validation
Functional prototypes accurately representing production material, texture, and thickness.
Bridge Production
Reliable ramp-up from initial prototype validation to market scale ahead of hard tooling.
Our Manufacturing Workflow
We follow a rigorous, 5-stage quality process to ensure every part strictly adheres to engineering requirements.
Design Review (DFM)
CAD file audit for draft angles, corner radii, and wall distribution to guarantee process feasibility.
Tooling Fabrication
CNC machining of tooling using cost-effective composites for prototypes or robust aluminum for production runs.
Material Selection
Sourcing certified PVC and engineering polymers tailored for flame retardancy, UV resistance, or chemical exposure.
Forming & Trimming
Controlled thermal cycling over vacuum tooling followed by 5-axis CNC routing for precise assembly cutouts.
Quality Inspection
Comprehensive dimensional, gauge, and finish verification against 2D production drawings.
Secondary Operations & Finishing
To provide a complete manufacturing solution, we offer extensive post-forming operations to deliver turnkey parts ready for assembly lines:
CNC Trimming
Multi-axis precision cutting for complex edge profiles, precise holes, and assembly slots.
Surface Finishing
Polishing, industrial painting, custom textures, and anti-glare coatings.
Printing & Branding
Durable silk screening and digital printing for serial markings, labels, and logos.
Sub-Assembly
Ultrasonic bonding, structural riveting, and installation of brass threaded inserts.
Custom Packaging
Export-grade protective dunnage and packaging suited for transit protection.
Industries Served
Plasticpartsmfg supplies durable, custom-formed components across diverse commercial and manufacturing sectors:
Industrial Automation
Rugged machine enclosures, electrical panel shrouds, and protective covers.
Medical Equipment
Chemical-resistant device casings, specialized sterilization trays, and diagnostics shells.
Consumer Electronics
Thin-profile aesthetic enclosures and rigid internal support structures.
Transportation & Automotive
Interior cabin trim panels, air duct components, and protective vehicle linings.
Retail & Display
Point-of-purchase visual displays, thermoformed merchandisers, and presentation packaging.
Request a Technical Quotation
We are ready to assist with your next project. Whether you have a 3D model ready for production or need guidance on material selection and design optimization, our team is here to help.
Recommended RFQ Submission Checklist:
- CAD Files: STEP, STP, or IGES files (preferred).
- Technical Drawings: PDF with critical tolerances and callouts.
- Material Specs: Desired plastic grade and sheet thickness.
- Quantity: Prototype quantity or estimated annual run.
- Secondary Needs: Post-forming trimming, printing, or assembly.
