Plastic Laser Cutting Services

Plasticpartsmfg provides tight-tolerance plastic laser cutting, profiling, and precision engraving for prototypes and production volumes. We process cast and extruded acrylic (PMMA), POM (Delrin), PET, ABS, polycarbonate films, and specialized engineering plastics with clean edges and zero mechanical stress.

Tolerances to ±0.10 mm
Sheet Thickness: 0.2 mm – 25 mm
No Tooling Fees | 1 Piece to 50k+
Upload CAD for Instant Review Process Capabilities
Production Summary

Laser Profiling Specifications

Standard Materials Acrylic (PMMA), POM, PETG, ABS, PC Film
Cutting Accuracy ±0.1 mm (±0.004 in)
Max Bed Dimension 1300 × 2500 mm
Accepted Data DXF, DWG, STEP, AI, PDF
Secondary Finishing Flame Polish, Solvent Weld, Bending, Screen Print
Turnaround Samples in 24–48 hrs

Engineering Capabilities & Precision Laser Systems

Our Shenzhen facility combines industrial CO2 and fiber laser systems with multi-axis motion control, providing non-contact cutting for brittle, transparent, and flexible polymer materials without distortion.

01

High-Clarity Edge Cutting

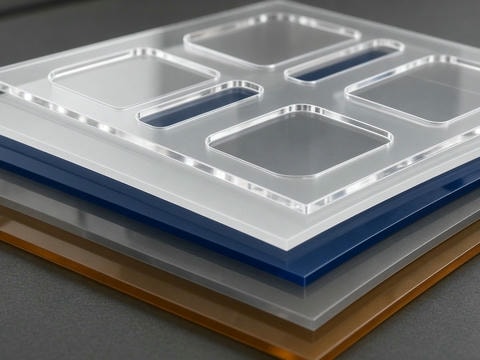

Produce crystal-clear, flame-quality polished edges on cast and extruded acrylic without additional manual buffing. Ideal for instrumentation windows, display fascias, light guides, and optical housings.

02

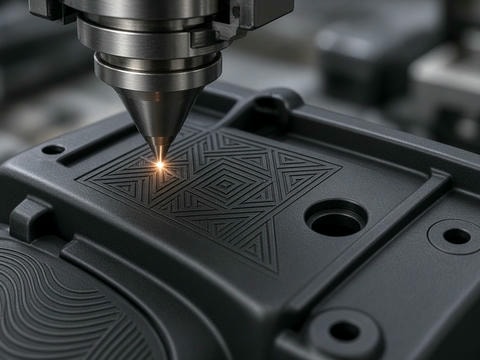

Micro-Engraving & Part Serialization

Permanent high-contrast laser etching for machine readable QR codes, UID barcodes, corporate branding, dial graduations, and deep tactile cavities on POM, ABS, and multi-layer laminate sheets.

03

Gaskets, Shims & Thin Films

Precision kiss-cutting and through-cutting of adhesive-backed engineering films, Kapton, Mylar, PTFE membranes, and silicone gaskets with zero tooling lead time and minimal heat-affected perimeter.

Plastic Laser Cutting Knowledge & Case Studies

Browse technical guides, material behavior reports, and manufacturing solutions developed by our engineering team.

Laser Cutting vs. CNC Routing: Selecting the Right Process

While both processes work from flat sheet plastic, laser cutting eliminates mechanical cutting forces, eliminating clamping marks and enabling sharp internal corners with an ultra-thin kerf (approx. 0.15–0.25 mm).

  • Sharp Internal Radii: Lasers cut tight internal 90° corners without the tool corner radius limitations inherent in end mills.
  • Optical Finish: Acrylic laser-cut perimeters feature glossy, transparent finishes straight off the bed without subsequent flame or mechanical polishing.
  • Material Compatibility: Optimal for PMMA, POM, PET, ABS, and wood/plastic composites. (PVC and PTFE requiring specialized ventilation/tooling are handled strictly in line with safety and technical protocols).

Engineer's DFM Checklist for Laser Cutting

Vector Geometry (1:1 Scale) Submit closed vector paths in DXF, DWG, or native STEP. Ensure lines are non-overlapping to avoid double-pass burns.
Minimum Wall Thickness Maintain feature widths at least equal to sheet thickness (e.g., ≥ 3.0 mm bridge for 3.0 mm acrylic) to resist heat distortion.
Hole Diameters Ensure hole diameters are at least 1.0× material thickness to maintain clean vertical walls and avoid taper.
Direct RFQ Channel

Request a Technical Laser Cutting Quotation

Submit your vector files (DXF, DWG, STEP, PDF) with material grades, sheet thicknesses, and quantities. Plasticpartsmfg engineers review geometries and deliver DFM feedback and pricing within 24 hours.
