Custom Hollow Component Manufacturing

Blow Molding Services

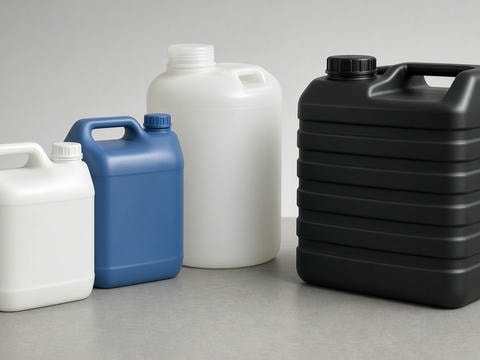

Plasticpartsmfg provides precision extrusion blow molding, injection blow molding, and stretch blow molding for hollow plastic parts, technical fluid reservoirs, industrial tanks, and custom containers. From prototype sampling in Shenzhen to multi-cavity mass production, we work directly to your engineering drawings and performance specifications.

Request a DFM & Quote View Process Capabilities
50 mL – 250 L
Part Capacity Range
HDPE, PP, PET, PC
Core Engineering Resins
±0.25 mm
Typical Wall & Neck Tolerance
Shenzhen, China
Direct Tooling & Molding

Industrial Blow Molding Capabilities & Engineering Scope

Blow molding is the preferred manufacturing route for enclosed hollow bodies where uniform structural integrity, leak tightness, and light weighting are mandatory. Based in Shenzhen, China, Plasticpartsmfg engineers and manufactures blow-molded components for industrial automation, automotive fluid systems, medical equipment housings, consumer packaging, and fluid containment.

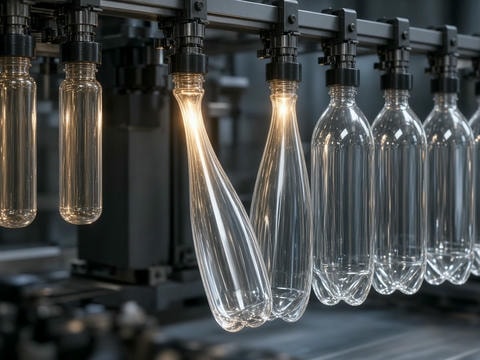

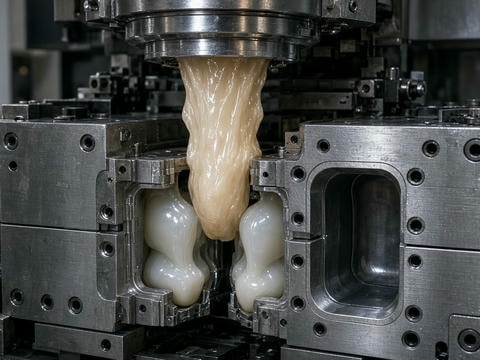

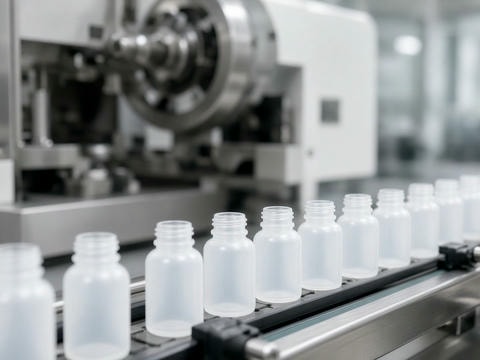

Our manufacturing operations accommodate standard extrusion blow molding (EBM), single-stage and two-stage injection stretch blow molding (ISBM), and injection blow molding (IBM). We assist engineering teams from 3D CAD modeling and mold parting line optimization to custom parison wall programming and post-mold secondary operations including spin welding, hot plate bonding, and thread calibration.

Blow Molding Technical Specifications

Parameter Standard Capability Engineering Focus
Processes Extrusion Blow Molding (EBM), Injection Blow (IBM), Stretch Blow (ISBM) Continuous extrusion, accumulator head, multi-layer co-extrusion
Materials HDPE, PP, LDPE, PET, PVC, PC, PA, Technical Blends UV stabilization, antistatic additives, chemical resistance
Container Volume 50 mL up to 250 Liters Small medical vials to large heavy-duty chemical reservoirs
Mold Construction Cast Aluminum, CNC Billet 7075-T6, Tool Steel Pinch-Off Inserts Rapid pilot tooling to high-cavitation production molds
Secondary Finishing Trimming, Ultrasonic Welding, Spin Welding, Screen Printing, Leak Testing 100% inline pressure decay leak verification available

Blow Molding Categories & Process Articles

Explore specialized blow molding processes, material guidelines, tooling design considerations, and product applications.

Design for Manufacturability (DFM) in Custom Blow Molding

Hollow part geometry requires specific design provisions that differ significantly from standard plastic injection molding. When reviewing CAD files for custom blow-molded enclosures and tanks, Plasticpartsmfg engineers analyze the following critical criteria:

  • Corner & Edge Radii: Sharp corners cause excessive wall thinning during parison expansion. Generous corner radii (minimum 3× to 5× wall thickness) ensure uniform structural rigidity.
  • Blow Ratio Management: We evaluate part depth-to-width ratios to prevent deep draw pockets that lead to weak spots or localized blow-outs.
  • Pinch-Off Land Geometry: Steel pinch-off edges are integrated into aluminum tooling to guarantee reliable weld line formation at the base or parting plane.
  • Thread & Neck Calibration: Precision compression or calibrated blow pins maintain tight neck tolerances for leak-proof cap sealing and threaded connectors.

Process Quick Links

RFQ

Have a Part Drawing?

Upload your CAD files for an engineering review. Our team in Shenzhen checks draft, blow ratio, tooling complexity, and unit cost.

  • ✓ STEP, STP, IGES, or PDF format
  • ✓ Quotes delivered in 24 hours
  • ✓ Prototyping to container production
Submit Your CAD Files

Common Resins We Mold

HDPE (High Density Polyethylene)
Rigid, impact-resistant, ideal for fuel cells, chemical tanks, and industrial bottles.
PP (Polypropylene)
High heat deflection, autoclavable, excellent chemical compatibility.
PET (Polyethylene Terephthalate)
Optical clarity, gas barrier performance, consumer and commercial containers.
Engineering Blends (PC / PA)
High impact strength and temperature resistance for technical ducting and reservoirs.

Quality Inspection

Every blow-molded batch undergoes strict dimensional and integrity audits prior to international shipment:

Ultrasonic Wall Gauge
Pressure Leak Decay
Drop & Impact Testing
CMM Neck Thread Check
Direct Factory RFQ

Request a Blow Molding Quotation

Send Plasticpartsmfg your STEP or IGES files alongside material, wall thickness, quantity, and secondary assembly requirements. Our engineering team will review the geometry and issue a comprehensive DFM and pricing proposal.
