Custom PVC Extrusion Services
Plasticpartsmfg delivers turnkey custom PVC profile extrusion for demanding industrial applications. From dedicated die design and precise resin selection to high-volume extrusion, secondary processing, and finished assemblies, we support your engineering cycles from initial prototypes through recurring mass production runs.
High-tolerance rigid & flexible PVC profile extrusion with inline dimensional verification.
Manufacturing Capabilities
We formulate rigid (uPVC), flexible PVC, and CPVC compounds tailored to strict mechanical, thermal, and regulatory requirements across diverse operating environments.
| Capability | Technical Specifications & Scope |
|---|---|
| Process | Custom Profile Extrusion (Single-screw and twin-screw high-efficiency profile lines) |
| Materials | Rigid PVC (uPVC), Flexible PVC (various Shore durometers), Chlorinated PVC (CPVC) |
| Typical Tolerance | ±0.10 mm to ±0.50 mm (governed by cross-sectional geometry, material grade, and cooling profile) |
| Secondary Services | Precision cut-to-length, multi-axis drilling, punching, adhesive tape backing, and hardware assembly |
| Production Volume | Rapid pilot/prototype runs, bridge manufacturing, through sustained high-volume production schedules |
| Finishing & Customization | Custom Pantone/RAL color matching, matte and high-gloss finishes, co-extruded dual-durometer profiles |

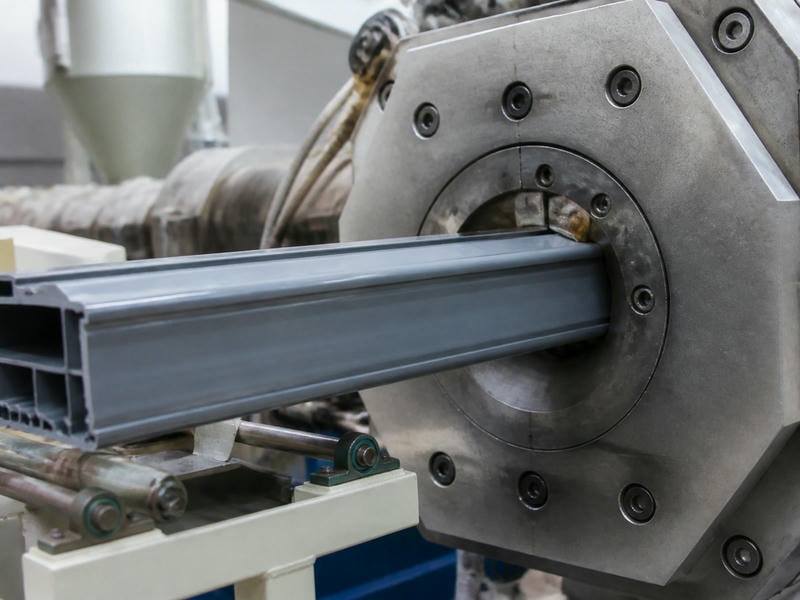

Precision extrusion die machining and calibrated sizing calibrators ensure profile stability.
Precision Tooling and Material Consistency
Stable profile quality starts in die design. We build and maintain custom tooling to deliver tight adherence to your CAD geometry across prolonged production cycles.
Design for Manufacturing (DFM)
Our engineering team analyzes CAD geometry early to optimize uniform wall thickness, radius transitions, and melt flow distribution, eliminating sink marks and cross-sectional distortion.
Engineered Material Formulations
We determine optimal compounding additives—including impact modifiers, UV stabilizers, and plasticizer levels—to ensure compliance with UV resistance, dielectric strength, and chemical durability specs.
In-line Dimensional Quality Control
Continuous monitoring and calibrated optical gauges track critical dimensions throughout the cooling and calibration process, guaranteeing repeatable cross-sections and minimal scrap.
Secondary Operations & Finished Assemblies
We handle post-extrusion fabrication to deliver installation-ready components directly to your production line, eliminating secondary handling and vendor overhead.
Precision Cutting
In-line continuous cutting and tight-tolerance off-line secondary cut-to-length operations tailored for accurate site assembly.
Mechanical Processing
Accurate multi-hole drilling, slot punching, routing, and miter shearing designed for mounting slots and drainage features.
Assembly & Backing
Automated pre-application of acrylic/foam high-bond adhesive tapes, co-extruded gaskets, and fastener integrations.
Export Packaging
Barcoding, tailored batch bundling, edge protection, and reinforced crating designed to withstand long-haul international transport.
Application Scenarios
Engineered for structural rigidity, weatherability, and chemical passivity, our custom PVC profiles power critical systems across diverse industry verticals.
Construction
High-performance profiles engineered for outdoor exposure, moisture resistance, and architectural stability.
- • Exterior window seals & weatherstripping
- • Thermal break frames & structural trim
- • Heavy-duty corner & edge guards
Electrical & Electronics
Dielectric compounds meeting UL flame retardancy requirements for power and telecommunication channels.
- • Rigid electrical conduits & raceways
- • Structured cable management channels
- • Insulative housings & busbar covers
Industrial Equipment
Resilient flexible PVC sections and seals offering chemical resistance and mechanical absorption.
- • Protective bumpers & cushion trims
- • Chemical enclosure seals & gaskets
- • Abrasion-resistant guide rails
Commercial & Retail
Aesthetic profile geometries tailored with tight color-matching and smooth surface finishes.
- • Shelf-edge data and pricing strips
- • POS fixture framing profiles
- • Snap-fit decorative moldings
From Prototype to Volume Production
Click each project stage to understand how we support you with clear validation gates, minimizing capital risk at every stage.
Rapid Prototype Tooling & Sampling
During early-stage engineering, we prioritize swift turnaround on trial dies. We formulate prototype compounds to evaluate assembly fit, wall flexibility, snap fits, and mechanical tolerance limits prior to authorizing hardened multi-cavity tooling.
Request a Quote
Send us your CAD models (STEP, IGS, DWG) or PDF technical drawings. Our Shenzhen extrusion engineering team will review your specs and provide a comprehensive DFM quotation.
Recommended RFQ Details
- • Resin: Rigid uPVC, Flexible PVC (specify Shore A/D), or CPVC.
- • Volume: Estimated prototype quantities and annual run rates.
- • Secondary Ops: Cut length, punching, tape backing, or assembly.
- • Timeline: Target sample delivery and production launch dates.
