Custom Polycarbonate (PC) Thermoforming & Vacuum Forming Services
Plasticpartsmfg delivers precision PC thermoforming and heavy-gauge vacuum forming solutions for industrial machinery, robotics, automotive modules, and electronics. Based in Shenzhen, our engineering team supports design and procurement teams with durable, tight-tolerance enclosures and structural components from rapid prototyping to bridge production.
1–10mm
Sheet Thickness
±0.5mm
CNC Trimming Accuracy
UL94 V-0
Flame Retardant Grades
Manufacturing Capabilities & Specifications
We utilize advanced vacuum forming and pressure forming equipment engineered specifically for high heat deflection polycarbonate and PC/ABS alloys, maintaining rigid wall integrity and refined cosmetic profiles.
| Capability Parameter | Technical Specification |
|---|---|
| Processes Supported | Vacuum Forming, Pressure Forming, Twin-Sheet Forming, Heavy-Gauge Sheet Forming |
| Formable Materials | Polycarbonate (PC), PC/ABS Alloys, PETG, ABS, High Impact Polystyrene (HIPS) |
| Sheet Thickness Range | 1.0 mm to 10.0 mm (Calibrated for uniform deep-draw expansion) |
| Maximum Part Size | Large-format industrial bed support (Provide CAD envelope for verification) |
| Typical Tolerances | ±0.5 mm to ±1.0 mm (Geometry dependent; CNC trimmed features to ±0.2 mm) |
| Production Stages | Functional Prototype, Pilot Tooling, Bridge Production, Low-to-Medium Volume Runs |
| Batch Quantities | 50 to 5,000+ units with scalable cast-aluminum or machined tooling sets |
| Supported Engineering Files | STEP, STP, IGES, X_T, DXF, DWG, PDF |
The Precision PC Thermoforming Process
Thermoforming heats thermoplastic sheets to high plasticity before pulling them over specialized aluminum molds. Polycarbonate requires precise thermal ramping to maintain structural stability and prevent surface blistering.
Tooling Design
CNC-machined aluminum or high-density epoxy molds engineered with strategic venting, draft angles, and thermal shrink compensation.
Zoned Material Heating
Pre-drying and ceramic multi-zone heating to bring PC sheets to optimal forming temperature while maintaining homogeneous sheet sag.
Vacuum & Assist Forming
Rapid vacuum evacuation coupled with mechanical plug assists to pull the sheet cleanly into complex undercut pockets and deep contours.
Cooling & 5-Axis Trim
Controlled cooling fixtures suppress warpage, directly followed by 5-axis robotic CNC trimming for precision perimeter edges and cutouts.

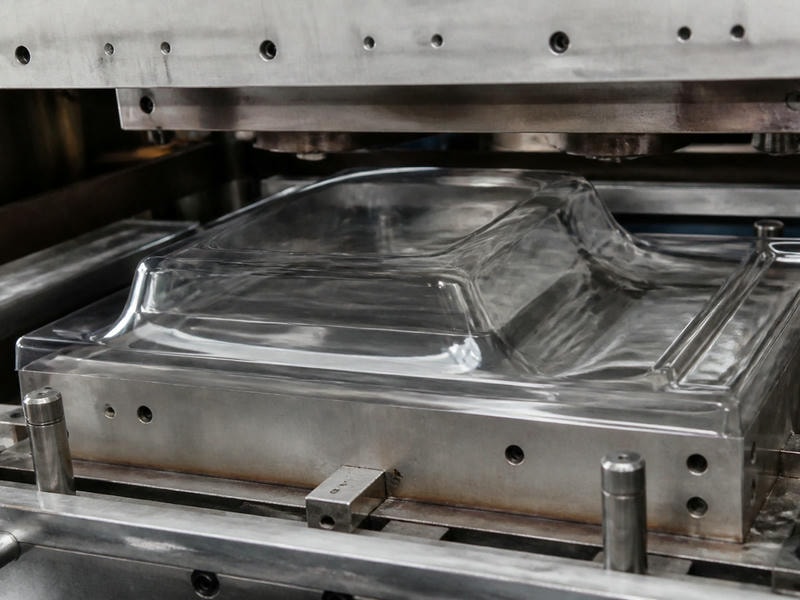

Transparent & structural PC elements formed with zero optical distortion and rigid impact zones.
Why Choose PC for Thermoformed Parts
Polycarbonate outperforms common plastics such as acrylic, standard ABS, or HIPS in harsh operating conditions, making it the premier choice for protective equipment and robust enclosures.
Superior Impact Strength
Virtually unbreakable under heavy operational shock, offering up to 250 times the impact resistance of standard glass and 30 times that of PMMA.
Certified Flame Retardancy
Formulated grades compliant with UL94 V-0 and FAR flammability criteria, crucial for electric vehicle housings and internal electronics.
Thermal & Dimensional Stability
Maintains structural envelope under continuous heat deflection conditions up to 130°C without sag or creep.
Optical Clarity & Light Weight
Available in water-clear sheets for viewing ports and vehicle canopies, reducing overall weight by over 50% compared to metal or safety glass.
When to Use Thermoforming Over Injection Molding
For heavy-gauge shells, large-footprint covers, and mid-tier production volumes, thermoforming eliminates high injection tooling investments while drastically compressing lead times.
Cost-Effective Large Parts
Large machine covers and chassis panels incur astronomical injection tooling expenses. Single-surface thermoforming molds slash initial tooling costs by up to 80%.
Low-to-Medium Production
Bridge production runs, replacement part supplies, and niche commercial machinery where high-volume steel injection molds cannot be amortized.
Flexible Design Updates
Aluminum patterns can be quickly modified or remachined, enabling your team to respond to hardware updates without scrapping massive tooling capital.
Thin-Wall Structural Parts
Delivers lightweight yet rigid enclosures that withstand continuous vibration and exterior impacts without adding unnecessary structural mass.
Secondary Operations & Turnkey Assembly
To make your parts production-ready right out of the box, Plasticpartsmfg provides comprehensive post-forming fabrication, cosmetic finishing, and mechanical hardware assembly.
5-Axis Robotic CNC Trimming
High-speed routing machines perform multi-axis contour cuts, routed slots, louvers, and counter-bored holes with repetitive accuracy down to ±0.2 mm.
Surface Finishing & Painting
Class-A automotive polyurethane coatings, soft-touch texturing, anti-scratch coatings, UV inhibitor layers, and custom RAL / Pantone color matching.
Printing & Labeling
Silk-screen printing, digital UV flatbed printing, instructional graphics, and durable serialized barcoding applied directly to the formed surfaces.
Ultrasonic Welding & Bonding
Structural adhesive bonding, solvent welding of internal brackets, and ultrasonic integration of stiffener ribs and mounting lugs.
Hardware Insertion & Sub-Assembly
Installation of threaded brass inserts, PEM nuts, hinges, rubber gaskets, magnetic latches, and window lenses ready for system installation.
Engineered Protective Packaging
Protective film lamination, molded foam nests, and reinforced export cartons or wooden crates tailored for long-distance international freight.
Industries We Serve
Engineering teams rely on our specialized PC thermoforming expertise to deliver critical components under demanding operational standards.
Industrial Equipment
Machine guards, electrical control consoles, operator cabs, and heavy-duty protective covers.
Automotive & Transit
Interior trim panels, underbody shielding, EV battery compartment guards, and dash cowlings.
Commercial Electronics
Server rack covers, kiosk enclosures, telecommunication bezels, and display bezels.
Medical & Diagnostic
Analyzer enclosures, cart shells, diagnostic device housing, and chemical-resistant panels.
Robotics & AGVs
Lightweight robot outer shells, LiDAR sensor domes, chassis hoods, and drone body housings.
Request a Fast Engineering Quote
Submit your CAD models and drawings for a complimentary Design for Manufacturing (DFM) assessment and detailed price quotation.
Please Include in Your RFQ:
- 3D CAD Files: STEP, STP, or IGES format (preferred)
- 2D Drawings: PDF with critical tolerances and finishing specs
- Material Details: Specific PC grade, thickness, color, or flammability requirements
- Quantities: Prototype volume and projected batch production sizes
- Secondary Operations: Trimming, inserts, hardware, or cosmetic painting
